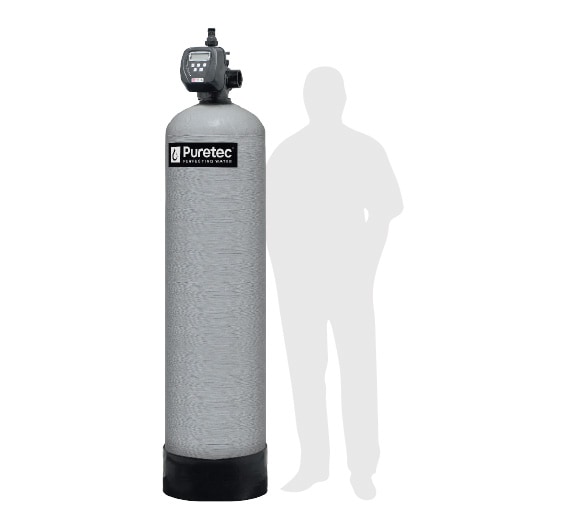

SFS100-2CI Sediment Filter

  • •Removes sediment, silt & sand

  • •Prevents sludge build up in pipes

  • •Max flow 150 Lpm, 50mm connection

Model No: SFS100-2CI

WHERE TO BUY

The Puretec SFS100-2CI sediment filtration system removes sediment, silt, sand and other particulate, preventing a build-up of sludge in your pipe work, hot water systems and appliances. It delivers a fully automatic and highly dependable control valve, which helps minimise energy and water waste. Features a fully automatic operation that provides a reliable design and simple programming for ease of use.

Automatically reduces dirt, rust and other sediment in your water.
Sediment filtration systems remove sediment, silt, sand and other particulate presenting a buildup of sludge in your pipe work, hot water systems and appliances. The Puretec SFS Series effectively protects your system with little or no maintenance by automatically back washing the graded filter bed.

Specifications

Ordering Code
SFS100-2CI
Valve
Automatic 2CI
Maximum Suspended Solids
500 mg/L
Flow Rate
100 Lpm
Maximum Flow Rate
150 Lpm
Connection
2” Male BSPT, 1” Drain
Min/Max Pressure
138 - 862 kPa
Operating Temperature
4 - 43°C (40 - 110°F)
Power Supply
230V AC / 50 Hz
Warranty
1 year^
Replacement Media Kits
RMK-SFS100
Accessories
WTV5092 - Differential pressure switch for load based backwashing.
WTV7500 - Alternating valve for 2 system / clean water to backwash.
WTV7550 - No Bypass valve to isolate the system during regeneration.
WTV7210 - Flow meter for volume based backwash.
WTV7400 - Microswitch kit for 2CI models
Operating Conditions: 1. Not recommended for colloidal particles. 2. Water turbidity and particle size will affect recommended flow rate. 3. The flow rate while the filter backwashes, needs to be equal to the stated service flow to maintain proper backwash functionality, which is critical for optimum performance of filtration systems. 4. Operating pressure 200 - 690 kPa, pressure loss 100 kPa.

Features & Benefits

  • •Reduces sediment, silt and suspended solids in high flow dirt applications.
  • •Filters sediment and particulate down to 3 micron.
  • •Complete system, no extra parts required.
  • •Automatic backwash – set and forget.
  • •Stores system configuration and operation data in non-volatile memory.
  • •Solid state microprocessor with easy access front panel settings.
  • •Front panel display for time of day, days until next regeneration.
  • •Up to 2” connections for minimum pressure loss.
  • •Weather resistant cover for controller.
  • •Weatherproof transformer.

Download

For Specifiers

Spare Parts

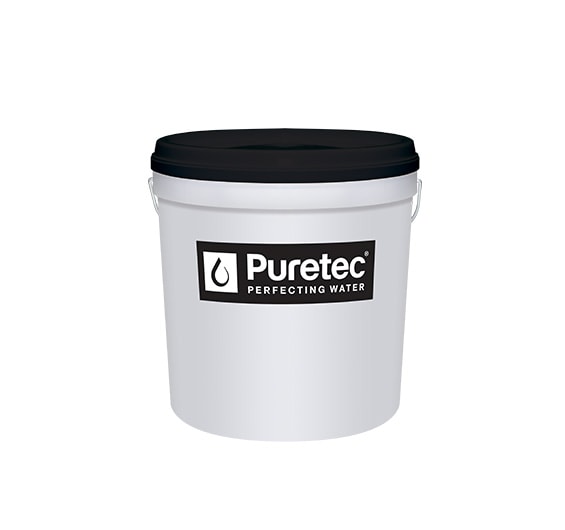

Replacement Media for SFS100-2CI System

Replacement Media for SFS100-2CI System

$1,185.51 INC GST*
