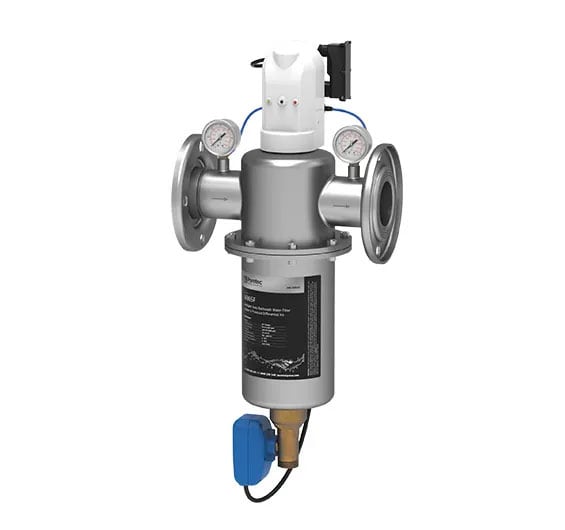

IAB65F-50 Backwash Filter

  • Automatic Backwash filter system

  • 50 micron, reduces sediment, silt & sand

  • 2 ½" flanged connection, 514-958 Lpm

Price: $8,770.67 INC GST*

Model No: IAB65F-50

WHERE TO BUY

The IAB65F-50 Series is specifically crafted for filtering cold drinking water, primarily in civil applications. However, it is versatile enough to safeguard water distribution lines in technological settings, such as heating and cooling systems and industrial installations. Potential impurities like sand, rust flakes, lime deposits, and coarse material pose a threat to water distribution lines and various appliances, including pipes, valves, mixers, faucets, and washing machines. Installing a protection filter presents a straightforward and efficient solution to prevent expensive maintenance.

Tailored for use in both mains and rainwater applications, the Puretec IAB stands out as an automatic self-cleaning filter. It boasts a robust and compact design, featuring a brushing system for filter screen cleaning and a discharge valve for removing dirt. These filters come equipped with pressure gauges to monitor any pressure drops across the filter screen.

Specifications

Ordering Code
IAB65F-50
Micron Rating
50 Micron
Min/Max Pressure
150 - 1000 kPa
Flow Rate (ÞP = 0.2 bar):
35 m³/h (583)
Flow Rate (ÞP = 0.5 bar)
49.6 m³/h (826)
Flow Rate
514 - 958 Lpm
Connection
2 1/2” (Flanged)
Warranty
1 year warranty^ is 1 year parts and labour only. Excludes consumables.

Features & Benefits

  • Program backwash intervals from hours to days 12/24/36/48 hours.
  • Single touch button manual override to backwash on demand at any time.
  • Stainless steel net filtering surface is resistant to mechanical shock and pressure gradients.
  • Cleaning brushes are equipped with Silver to inhibit bacterial growth.
  • Simple initial set up.
  • Set and forget cycles.
  • The stainless steel body means it’s tough and resistant to mechanical shear stresses.
  • High strength Trogamid discharge valve.
  • 50 micron filter screen.
  • Two dry contacts for external equipment such as monitoring, solenoids etc.
  • Includes differential pressure switch.
  • Twin pressure gauges to monitor pressure drop.
  • Flanged connections.
  • Equipped with a mechanical discharge solenoid valve.
