Hybrid R2 High Flow UV System, 130L/min Reversible Bracket

  • •Dual rainwater filter system with UV

  • •For 130 LPM, 1" connection

  • •For indoor installation

Price: $2,554.46 INC GST*

Model No: HYBRID-R2-LF

WHERE TO BUY

This system filters sediment, chemicals including chlorine, bad taste, odour and is highly effective in eliminating bacteria and parasites in your water. This system has a higher capacity and longer life filter cartridges compared to Hybrid R1.

Suited to medium to large applications that require higher capacity and longer life filter cartridges. This system is designed for both mains and rainwater supply. This unit can be installed from left to right or right to left depending on the installation requirements.

The Hybrid R Series needs to be installed where it is protected from the weather. For outside installations use the Hybrid G Series.

Specifications

Model No
HYBRID-R2-LF
Replacement Parts and Cartridges
Stage 1 filtration
PL05MP2
Stage 2 filtration
DP10MP2
UV Lamp
RL6
Quartz Sleeve
RQS6
Flow rate @40mJ/cm²:
54 Lpm
Flow rate @30mJ/cm²:
70 Lpm
Flow rate @16mJ/cm²:
130 Lpm
Connection
1" BSP [25mm]
Warranty
3 years^
Important Note: Use only genuine Puretec replacement cartridges. Flow rate @30mJ/cm² is the industry standard for drinking water. Puretec Hybrid UV systems are designed for common rainwater. The effectiveness of a UV system is dependent on the clarity of water present. If you are unsure of the clarity of your water Puretec can arrange a UVT test to verify that no further filtration is required before the UV. Contact Puretec on 1300 140 140 (AU) or 0800 130 140 (NZ) for further information on this.

Features & Benefits

  • •Kills up to 99.99% of E. Coli, Giardia and Cryptosporidium cysts.
  • •Utilises ultraviolet technology, a natural purification process that is eco-friendly and chemical-free.
  • •Dual filtration for extra sediment capacity.
  • •Filtration and ultraviolet all in one unit.
  • •Reversible aluminium mounting bracket for easy installation.
  • •Made from lightweight, durable materials.
  • •Equipped with a lamp count-down timer and alarm.
  • •Anti-corrosion construction.
  • •1” connections.
  • •Quick and easy plug-and-play installation.

Download

For Specifiers

Videos

    Spare Parts

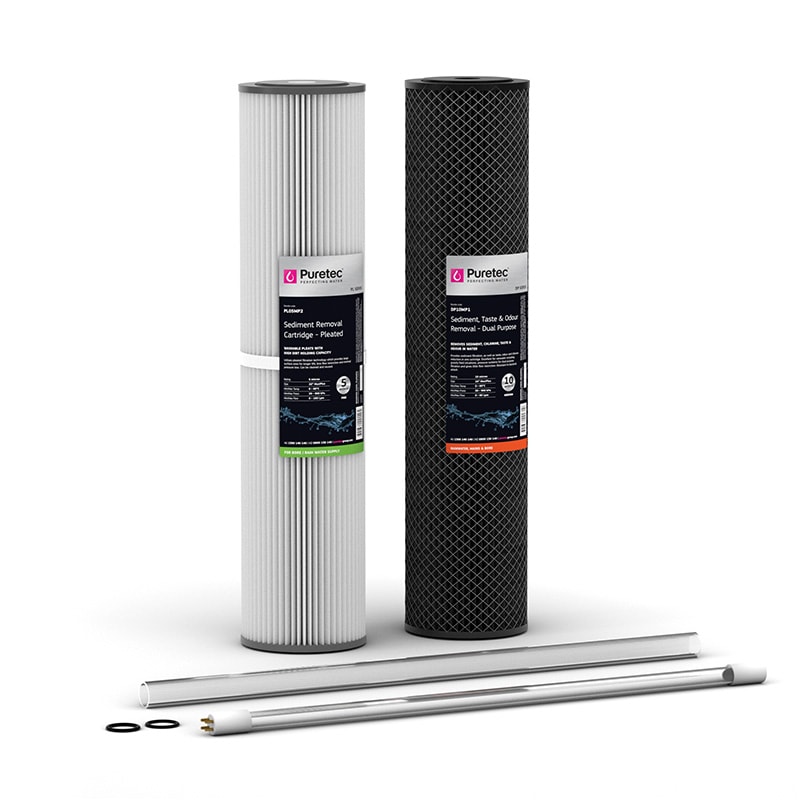

    Maintenance kit suits Hybrid G7 / R2 series

    Maintenance kit suits Hybrid G7 / R2 series

    $801.66 INC GST*
