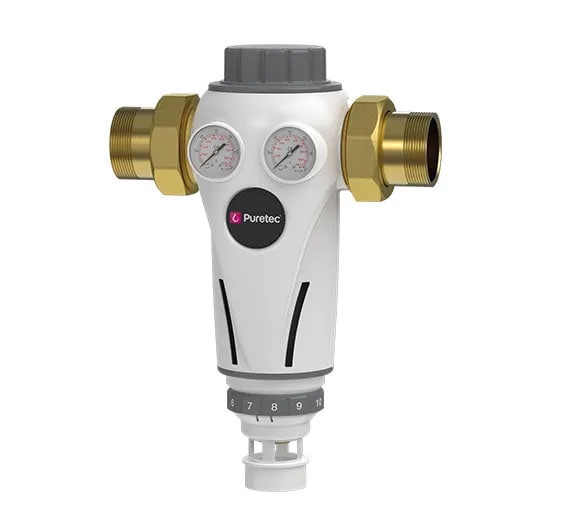

IMB25+ Backwash filter

  • •Manual Backwash filter system

  • •Reduces sediment, silt & sand

  • •100 micron, 1" connection, 100 Lpm

Price: $640.39 INC GST*

Model No: IMB25W

WHERE TO BUY

Specifications

Ordering Code
IMB25W
Micron Rating
100 Micron*
Nominal Flow Rate
100 Lpm
Min/Max Pressure
150 - 1000 kPa
Min Pressure for Backwashing
250 kPa
Min/Max Temperature
5 - 30°C
Water Consumption During Backwashing:
14 L
Power Supply
Not needed
Connection
1” BSPF
Warranty
1 year^
Protect from freezing. *Micron rating is nominal. ~If the pressure exceeds max pressure, an approved pressure-limiting device needs to be fitted. Note: Check local plumbing regulations as a specific kPa limit for the pressure limiting valve may be required (in particular, The Australian & New Zealand Plumbing Standards. Ref. AS/NZS 3500.1:2021, Clause 3.3.4). If a water hammer is present, fit a hammer arrestor close to the source of the hammer. ^Warranties in this document cover parts for the period stated and include cover for parts and labour for the first year where applicable, subject to approval.

Features & Benefits

  • •Brass head means it’s tough and resistant to mechanical shear stresses.
  • •Stainless steel net filtering surface is resistant to mechanical shock and pressure gradients.
  • •Cleaning brushes are equipped with Silver to inhibit bacterial growth.
  • •Easy to use large turn and click knob to engage backwash function.
